In any industrial piping system, valves are like the traffic police. They decide where the liquid or gas goes, how fast it moves, and when it needs to stop. While most valves just have an “in” and an “out,” the 3 way globe valve is a bit more special. It is a versatile tool that handles flow in three different directions, which makes it a favorite for complex systems.
Whether you’re managing a factory, a chemical plant, or just want to know how fluid control works, this guide explains it all in plain, simple words.

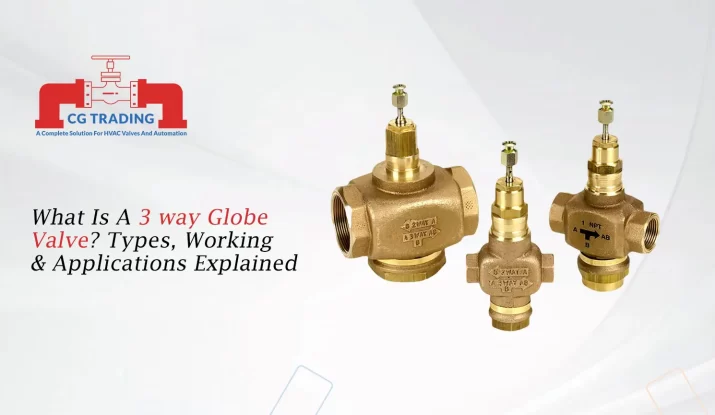

What is a 3 way globe valve?
Most valves have two ports—one for the fluid to enter and one to leave. A three-way globe valve, as the name suggests, has three ports. This clever design lets the valve do things a standard one simply can’t, like mixing two different streams together or splitting one stream into two different pipes.
It’s called a globe valve because the body is usually rounded. Inside, there is a plug that moves up and down to control the flow with a very high level of precision.
How Does a 3 Way Globe Valve Work?
The way this valve works is actually pretty straightforward. Inside the valve body, there is a movable disk or plug. When you turn the handle (or an automated system moves the stem), that plug moves to open or block different paths. Depending on how the pipes are hooked up, the valve does two main jobs:
Mixing: It takes fluid from two different pipes, blends them inside the valve, and sends the mixture out through one exit.
Diverting: It takes fluid from one pipe and decides which of the other two pipes it should go into.
Types of three-way globe valves
Mixing Type: You’ll find this in systems where you need a specific temperature or chemical blend. It merges two separate streams into one. Think of it like a shower mixer that blends hot and cold water.
Diverting Type: This type is built to redirect flow. It takes one stream and sends it to either Port A or Port B. It is perfect for switching between different parts of a piping network without shutting everything down.
Applications for 3 way globe valves
- Used for air separation.
- They are used to process natural gas.
- Liquefaction of natural gas.
- Wood processing.
- Water treatment.
- Food processing and production.
- Increase consistent flow in heat exchangers.
- Improve the consistency of a heat exchanger’s water supply and temperature.
Features of a 3 way globe valve.
- Use top entrance design to simplify inspection and maintenance.
- Can work with several types of actuators according to client demands.
- They feature balanced trim, allowing for high fluid flow rates while minimizing actuator size.
- Excellent fluid flow control versatility.
- Can combine many fluids into a single fluid component.
- These valves may redirect flow in one direction to another.
- Restrict fluid flow.
Conclusion
3 way globe valves are globe valves with three ports. These valves are used to redirect and mix fluids. When used to mix fluids, the valve has two inlets and one exit port. When used to redirect fluids, the valve has one intake and two exits. Three-way globe valves have their seats at the bottom of the valve body. The third port on these valves is placed normal to the other two apertures. Three-way globe valves come in two types: diverting and mixing.
